800G & 1.6T FRO High-Speed Optical Modules

“Computing power determines the ceiling; interconnectivity determines survival.” As the scale of AI computing clusters continues to grow, the interconnect bandwidth and density that “determine survival” are also rising accordingly. In today’s AI computing centers, 51.2T switches, particularly the 64×800G configuration, are becoming the new standard for primary switching nodes due to their high bandwidth and density, leading to the widespread adoption of 800G optical modules. With the introduction of 102.4T switches, the optical communications industry is already gearing up for the wave of 64x1.6T solutions. Stable and reliable 1.6T optical modules are crucial for ushering in a new era of optical interconnect.

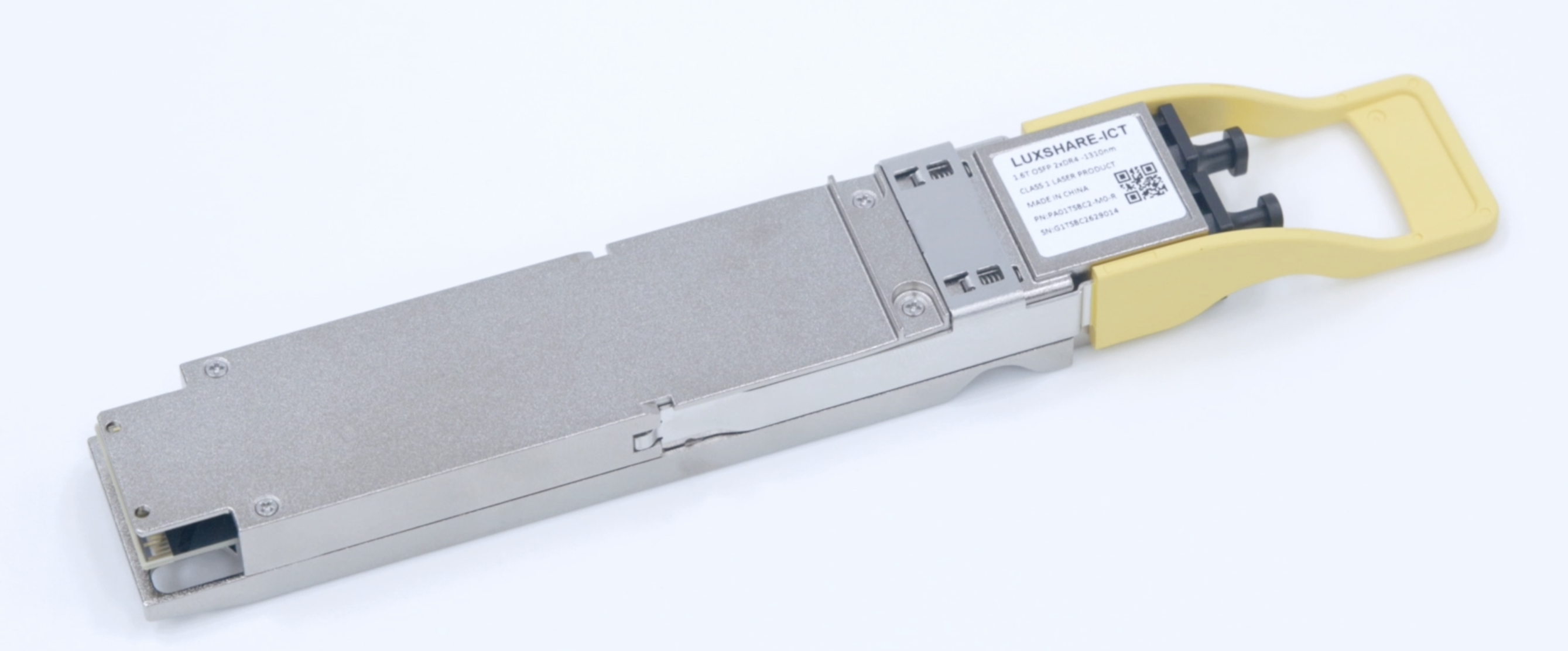

Based on industry needs, Luxshare-Tech has comprehensively deployed a variety of optical module solutions, including FRO, LRO, and LPO, to fully cover all speed specifications. Luxshare-Tech’s 800G and 1.6T FRO high-speed optical module series adopt the OSFP packaging format, focusing on core high-speed interconnect requirements, with distinct emphases on transmission types and technical configurations to precisely match different application scenarios.

Emphasizing exceptional value and broad compatibility, these modules offer multiple transmission choices of DR8, 2xDR4, and 2xFR4, which can provide flexibility and adaptability for various transmission scenarios. The are currently the main product for general-purpose interconnects in data centers.

Key Technologies and Parameter Highlights:

• Equipped with a silicon photonics engine, a low-power 8:8 5nm DSP (Digital Signal Processor) chip, a high-speed silicon modulator, and a high-power continuous-wave laser, delivering outstanding and stable performance.

• Maximum data rate of up to 850Gbps with a peak power consumption of only 14.5W, offering exceptional energy efficiency.

• Suitable for general-purpose data center interconnects, AI inference, and large-scale deployments, offering strong compatibility.

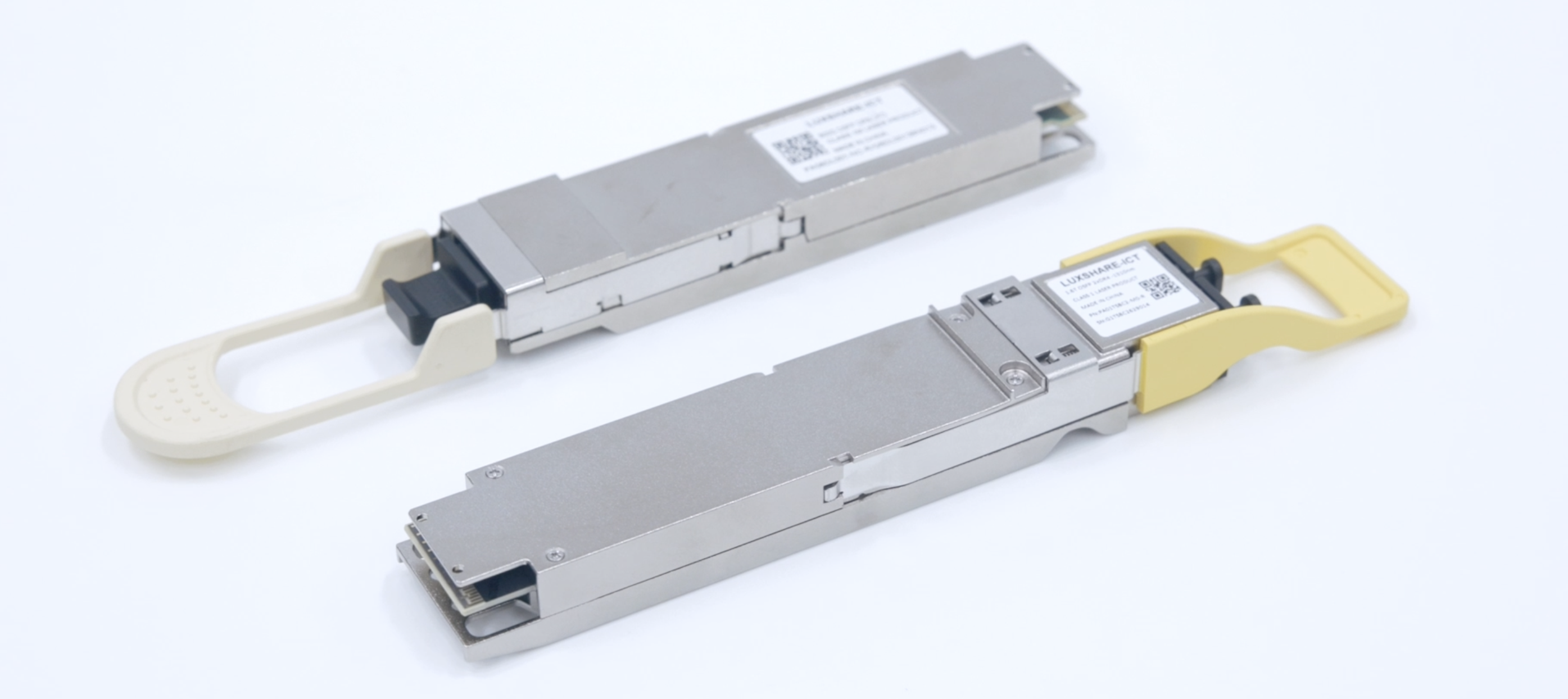

As the core product for next-generation high-end scenarios, the 1.6T series focuses on high-performance compatibility, with transmission types focusing on 2xDR4 and 2xFR4, addressing core medium-to-high-speed interconnect needs.

Key Technologies and Parameter Highlights:

• Equipped with advanced 3nm PAM4 8:8 DSP chips and high-power CW lasers, delivering strong performance.

• Supports the CMIS management interface and is fully compatible with the IEEE802.3dj standard.

• Module power consumption is strictly controlled below 25W, balancing high performance with low power consumption requirements.

Mass Production Strategy and Future Vision

Currently, Luxshare-Tech’s 800G series optical modules have achieved mature mass production with a well-established supply chain and stable supply. Thanks to their superior performance and cost-effectiveness, they have become our most shipped products, providing reliable support for various data center projects. The 1.6T optical module series are keeping pace with industry trends and have entered the early stages of large-scale commercialization, with bulk shipments progressing steadily to gradually meet deployment demands in high-end scenarios.
